Cross Roller Bearing SRU Type | One piece inner & outer Ring

  • Crossed Roller Bearing SRU Type

Cross Roller Bearing SRU Type

Cross Roller Bearing SRU Type

Product Number : SRU (One pice inner & outer ring)


SRU Type features: The single structure with mounting holes on inner and outer rings does not require the use of flange discs or housings; therefore reduces mounting errors, achieves stable rotational accuracy and high moment torque. Suitable for inner and outer ring rotation.

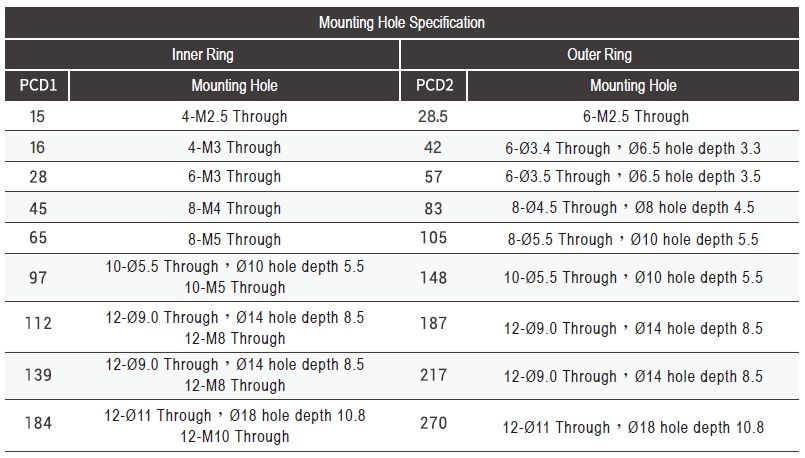

Models & Dimensions

Models & Specifications | Cross Roller Bearing SRU Type
Models & Specifications | Cross Roller Bearing SRU Type
Models & Specifications | Cross Roller Bearing SRU Type
Models & Specifications | Cross Roller Bearing SRU Type

Models & Specifications | Cross Roller Bearing SRU Type

Models & Specifications | Cross Roller Bearing SRU Type

Models & Specifications | Cross Roller Bearing SRU Type

Accuracy Standards

Accuracy and dimensional tolerances of cross roller bearings are in accordance with the specifications shown in tables.

SRU inner diameter dimensional accuracy

Models & Specifications | Cross Roller Bearing SRU Type

SRU outer diameter dimensional accuracy

Models & Specifications | Cross Roller Bearing SRU Type

SRU inner ring rotational accuracy

Models & Specifications | Cross Roller Bearing SRU Type

SRU outer ring rotational accuracy

Models & Specifications | Cross Roller Bearing SRU Type

SRU Inner & Outer ring width tolerances

Models & Specifications | Cross Roller Bearing SRU Type

 Download

單位:mm
Axial Model no. download Axial Model no. download
PDF 2D(dxf) 3D PDF 2D(dxf) 3D
20 SRU42 160 SRU228(G)
35 SRU66 SRU228X
55 SRU85
80 SRU124(G)
SRU124X
90 SRU148(G)
SRU148X
115 SRU178(G)
SRU178X
