X Axis Dovetail Stage SEMC1D-60T With Micrometer Head & Rack and Thin Type

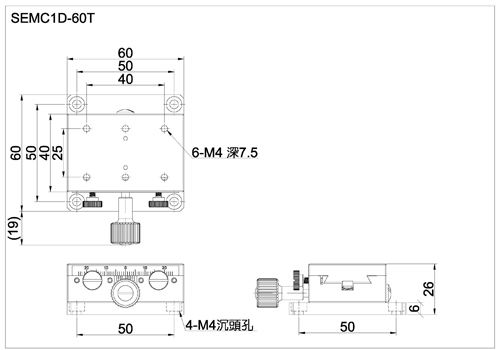

X Axis Dovetail Stage SEMC1D-60T



Product Number : SEMC1D-60T

Table Size 40x60mm
Travel stroke ±21mm
Moving straightness 30μm
Horizontal load capacity 29.4N
Vertical load capacity 14.7N
Weight 0.21Kg
Material Aluminum
Surface treatment Black anodized

The SEMC1D-60T dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±30mm and equipped with six tapped holes to maximize the mounting options for moving components. The modular design of the SEMC1D-60T allows single stages.

The x axis dovetail stage SEMC1D-60T is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Single Axis : X Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
