Structures of SRV models of gonio ways
Structures of SRV models of gonio ways
SRV models (figure 1) of gonio ways are made up of precisely ground V-shaped track and retainers equipped with arc rollers.

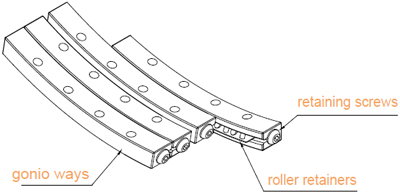

Figure 1 structures of SRV models
