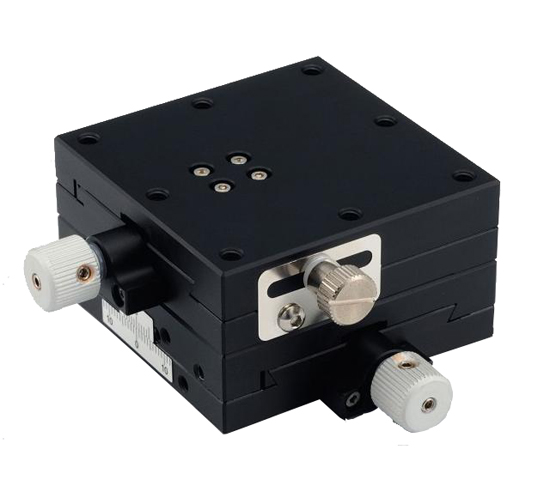

XY Axis Dovetail Stage SEMC2A-60 With Micrometer Head & Feeding Screw
XY Axis Dovetail Stage SEMC2A-60



Product Number : SEMC2A-60

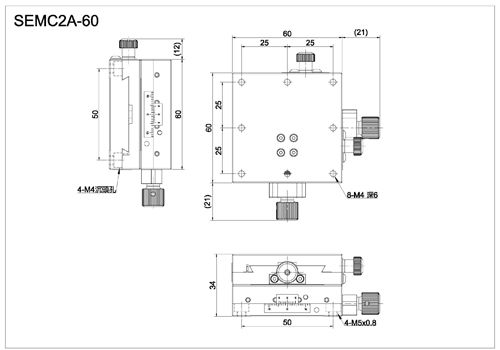

Table Size 60x60mm
Travel stroke ±9mm
Moving straightness 30μm
Load capacity 33.3N
Weight 0.34Kg
Material Aluminum
Surface treatment Black anodized

The SEMC2A-60 dovetail stage is a compact positioner for use in general purpose motion control applications. It provides a travel range of ±9mm and equipped with eight tapped holes to maximize the mounting options for moving components. The modular design of the SEMC2A-60 allows single stages.

The xy axis dovetail stage SEMC2A-60 is suitable for optical instruments, measuring devices, inspection apparatus, semiconductor manufacturing equipment, testing machines, microscopes, handling machine, processing machines, medical equipment, printing, and more.

  • Dual Axis : XY Axis Manual Stage
  • Guiding Type : Dovetail Guiding
  • Feeding Mode :Rack and Pinion Type
  • Minimum reading : 0.1mm/Vernier
