| Table Size | 80x80mm |
| Travel stroke | ±12.5mm |
| Parallelism | 90μm |
| Moving parallelism | 30μm |
| Moving straightness | 15μm |
| Pitching | 35" |
| Yawing | 25" |
| Load capacity | 93.1N |
| Weight | 0.91Kg |
| Material | Aluminum |
| Surface treatment | Black anodized |

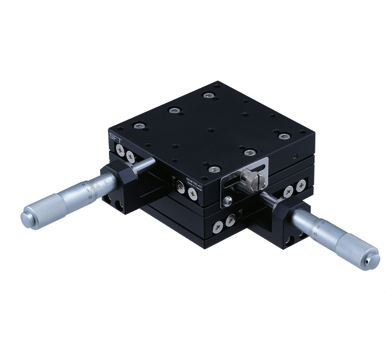

The xy axis crossed roller bearing stage with micrometer head SEMY80-AC is composed of precise crossed rollers with hardened steel formed precisely to be V-grooves rail guides to create linear motion element in high accuracy.
The manual stage SEMY80-AC is suitable for high-precision and heavy load mobile devices, precision measurement of optics laboratory, precision fine-tuning, production machinery, inspection equipment, precision positioning, quantitative movement, and more.
