SCRV Type

SCRV Type

Product Number : SCRV


SCRV Type features: 4 curved rails with V-grooves and 2 curved roller retainers with precision rollers, providing precise and stable arc movement.

Models & Dimensions

Models & Specifications | SCRV Type | SFT Gonio Way

Structure of Gonio Way SCRV Type

SFT Gonio Way Structure



















Model number Revolution
range
Roller
dia.
(D)(mm)
Roller
quantity
(G)
Main sizes
L
(mm)
R
(mm)
R1
(mm)
R2
(mm)
AB B C
SCRV0240-51-7G ±8° 2 7 40 51 53.5 48.5 11.3 5 5.25
SCRV0240-70-7G ±6° 70 72.5 67.5
SCRV0240-89.5-7G ±5° 89.5 92 87
SCRV0260-65-11G ±8° 11 60 65 68 62 16 6 7.6
SCRV0260-89-11G 89 92 86
SCRV0260-113.5-11G ±6° 113.5 116.5 110.5
SCRV0260-138.5-9G ±5° 9 138.5 141.5 135.5



Model number weight
per set
(g)
permitted
loads
(F)(N)
Basic
capacity
θ°


T

(mm)

S



Y

(mm)
K

(mm)
MxP

(mm)
Download
static
(C)(N)
dynamic
(C)(N)
PDF 2D (dxf) 3D
SCRV0240-51-7G 29 480 1420 800 46.2º 1.5 M2 2.0 8 2x12
SCRV0240-70-7G 33.2º
SCRV0240-89.5-7G 25.8º
SCRV0260-65-11G 79 853 2629 1320 55º M3 2.5 11.25 3x12.5
SCRV0260-89-11G 77 39.4º
SCRV0260-113.5-11G 30.7º
SCRV0260-138.5-9G 25º

Accuracy

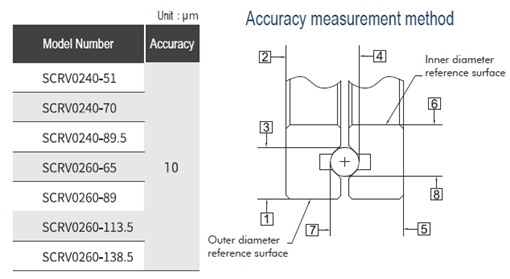

SFT Gonio Way accuracy is measured by the method shown in the following figure which measures the mutual dimensional deviations of the four rails along their full length.

SFT Gonio Way Accuracy & Measurement
